Name: Unicomp UNCT2000 Industrial CT Machine For Electric Vehicles Battery Cell Housing Cracks Inspection
Brand: UNICOMP
Price: 1 USD

Brand Name : UNICOMP

Model Number : UNCT2000

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : Can Negotiate

Payment Terms : T/T, L/C

Supply Ability : 10 sets per month

Delivery Time : 30 days

Packaging Details : Wooden Case, Waterproof, Anti-collision

Origin : China

Weight : 6000KG

Tube Voltage : 0-225KV

Dimension : 2635(W)×2114(D)×2069(H)mm

Generator Power : 320W

Brand : Unicomp

Contact Now

High resolution industrial CT machine Unicomp UNCT2000 for electric vehicles battery cell housing cracks inspection

Function Application:

Unicomp UNCT2000 Industrial CT Machine For Electric Vehicles Battery Cell Housing Cracks Inspection

Equipment Features:

Powerful Function: DR and CT dual system, Tomography, 3D rebulid and analysing.
High Safety: Multiple safety protection measurements, meets all the international safety standards.
User Friendly: User friendly system, easy operation.
High Precision Inspection: High-precision mechanical transmission system, advanced image processing technology

Technical Specifications:

System Summary
Footprint	2635(W)×2114(D)×2069(H)mm
Machine Weight	≈ 6000 kg
X-Ray Safety	<1μSv/h (Meets All International Standards)
Power Supply	AC 380V, 50/60Hz
Power Consumption	9 kW
Console	Highly intergrated design
X-Ray Tube
Tube Type	Separated Type
Focus Spot Size	< 4μm
Voltage	0~225kV (Adjustable)
Tube Consumption	320W
Imaging System
Detector	A-Si
Pixel Size	139μm
Effective Detection Area	427*427mm
Pixel Matrix	3072*3072
Motion Control System
Max. Inspection Area	ф300*500mm
Max. Loading Weight	30 kg
Software
Coordinate measurement module, design parts/objects comparison module, wall thickness analysis module, pore inclusion analysis module, expanded version of pore/inclusion analysis module, fiber composite material analysis module, expanded version of pore/inclusion analysis module, manufacturing geometry correction module, volume grid calculation module, structural mechanics simulation module, transfer field simulation module and other functions are optional.
* Specifications are subject to change without notice, All trademarks are the property of the system maker.

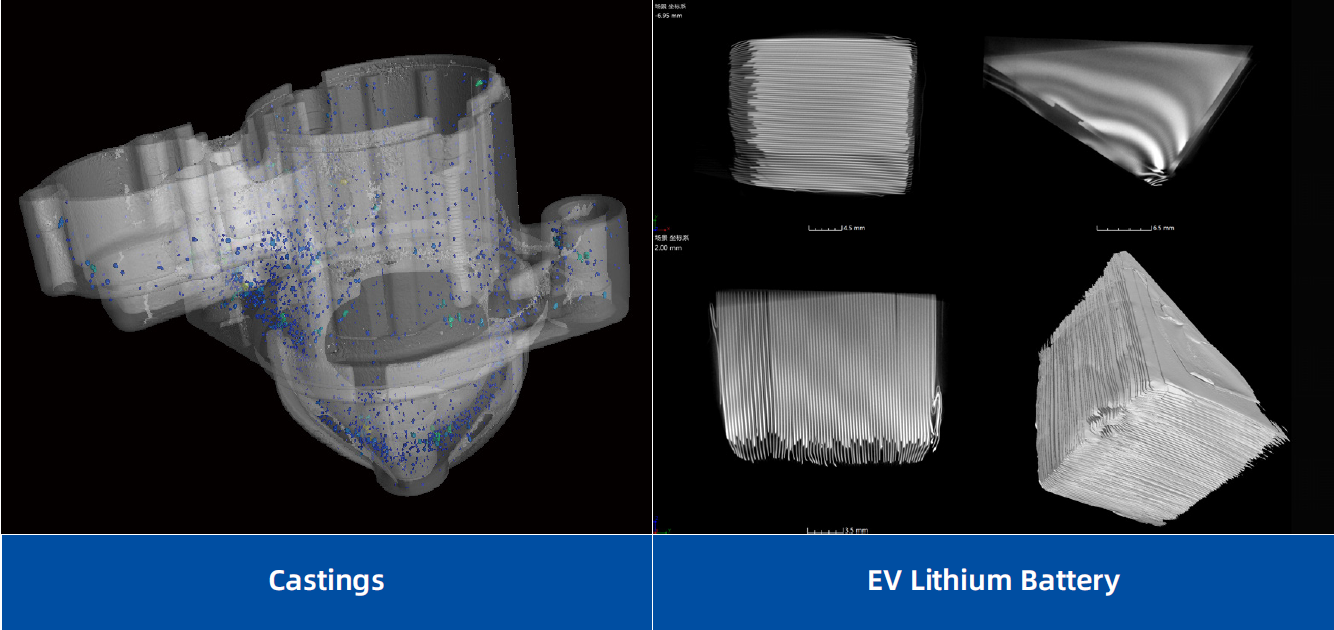

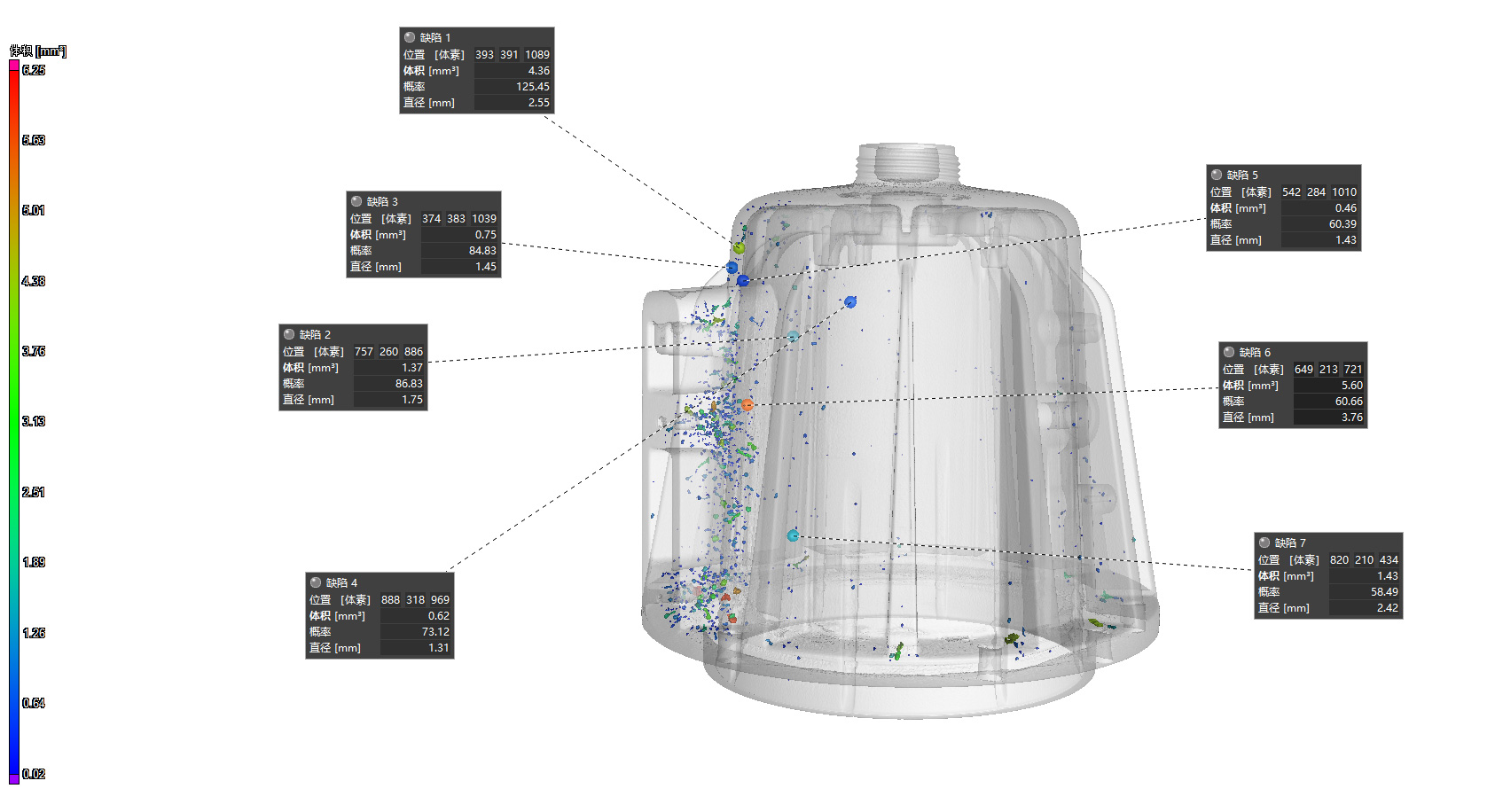

X-Ray Images:

Unicomp UNCT2000 Industrial CT Machine For Electric Vehicles Battery Cell Housing Cracks Inspection

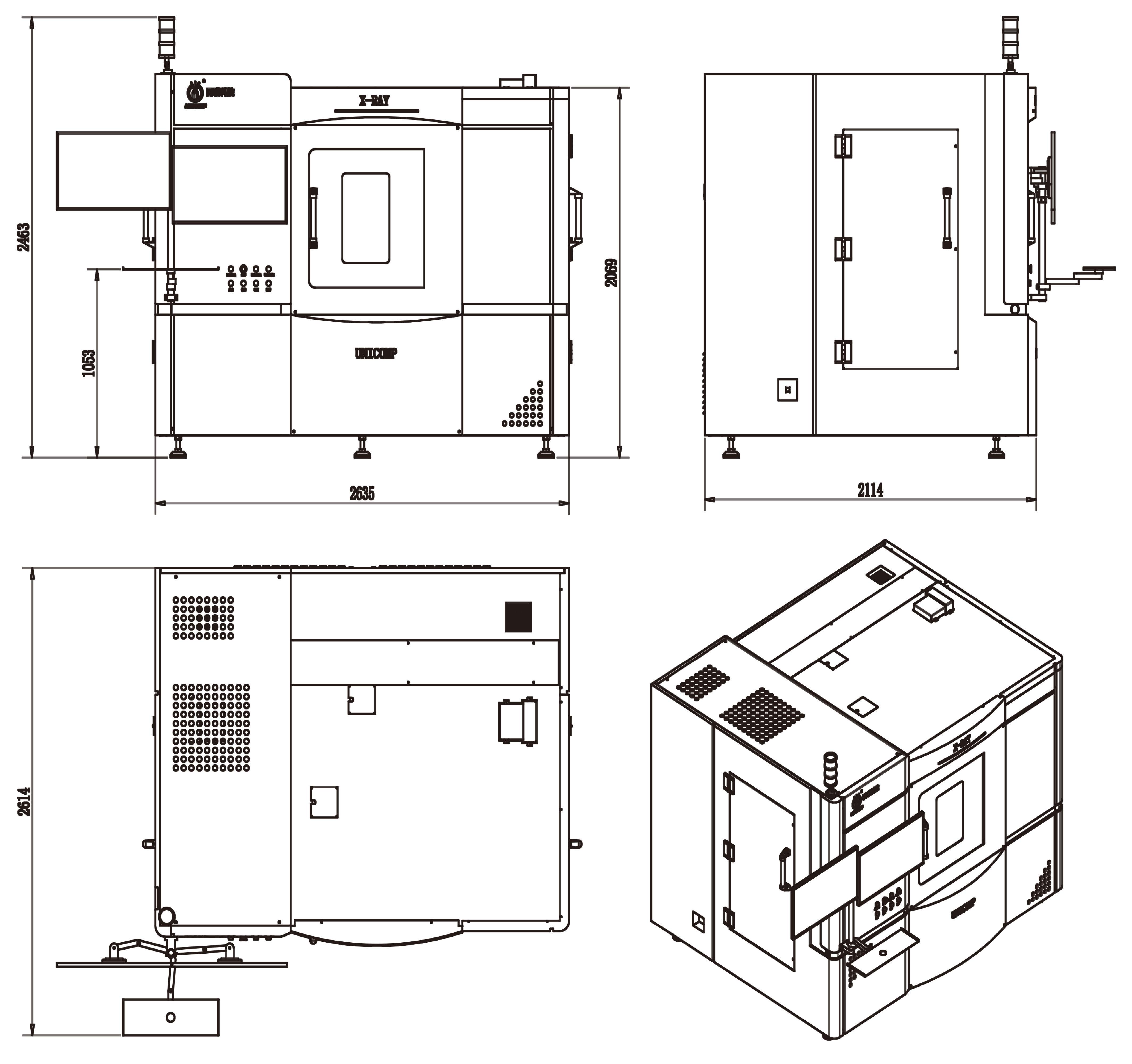

Footprint:
