IGBT Defects Control Microfocus X Ray Source Installed on X Ray Detection Machine

Name: IGBT Defects Control Microfocus X Ray Source Installed on X Ray Detection Machine
Brand: Unicomp
Price: 1 USD

Buy cheap IGBT Defects Control Microfocus X Ray Source Installed on X Ray Detection Machine product

Brand Name : Unicomp

Model Number : UNMS-U150B

Certification : CE, FDA

Place of Origin : China

MOQ : 1set

Price : Can be negotiated

Payment Terms : T/T, L/C

Supply Ability : 100 Per Month

Delivery Time : 2 Weeks

Packaging Details : Thick wooden box

Contact Now

Chinese Factory X Ray Source for X Ray Inspection Machine to check IGBT

Key Parameter:

Max. Tube Power: 60W
Max. Tube Voltage: 150kV
Beam Angle: 110±3°
Min. Spot Size: ≤7μm

Applications:

Integrated Circuit Package
EV Battery
SMT, PCBA ,Electronic Manufacturing
IGBT Substrate / Module

Specifications:

Operating Tube Voltage Range

40-150 kV

Operating Tube Current Range

0-400 μA

Maximum Tube Power

60W

Power Consumption

＜150W

Input Voltage (DC)

48±0.5V

Window Material/Thickness

Be/0.51mm

Window Diameter

38mm

Beam Angle

100±3°

Target Material

Tungsten

Weight

Approx.15kg

FOD

12±0.5mm

Safty Interlock

External Short-circuit

Operating Mode

Continuous

Control Connection

Digital Control

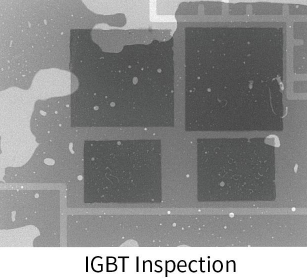

X-ray Images:

IGBT Defects Control Microfocus X Ray Source Installed on X Ray Detection Machine

Footprint:

IGBT Defects Control Microfocus X Ray Source Installed on X Ray Detection Machine
