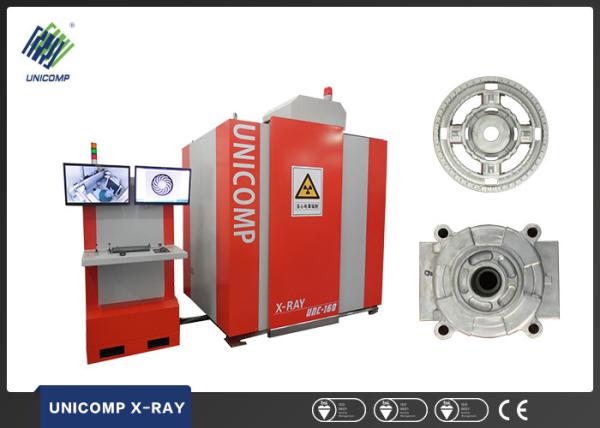

Automotive Parts NDT Industrial X Ray Machine High Accuracy Inspection UNC160

Name: Automotive Parts NDT Industrial X Ray Machine High Accuracy Inspection UNC160
Brand: UNICOMP
Price: 1 USD

Buy cheap Automotive Parts NDT Industrial X Ray Machine High Accuracy Inspection UNC160 product

Brand Name : UNICOMP

Model Number : UNC160

Certification : CE

Place of Origin : China

MOQ : 1Set

Price : Can Negotiate

Payment Terms : T/T, L/C

Supply Ability : 10 sets per month

Delivery Time : 30 days

Packaging Details : Wooden Case, Waterproof, Anti-collision

Maximum penetration（FE） : 100mm/20mm

Tube Voltage : 160kV

Focal size : 0.5mm

Size : 2100mm*1549mm*2468mm（L*W*H）

Detection range : Φ500*800mm

Weight : 3.5T

Contact Now

Automotive Parts NDT Industrial X Ray Machine High Accuracy Inspection UNC160

1. Reliable inspection decisions based on outstanding image quality

2. High-speed wheel inspection of the heaviest wheels with our new gripper manipulator

3. Automatic inspection software for a reliable, objective inspection decision and low pseudo reject numbers

4. Revolving in/out-feed doors for high throughput at maximum up-time and minimum maintenance costs

5. Automatic calibration, eliminating need for frequent program maintenance

6. Full integration into the plant for efficient and comfortable processes

Applications:

●Cast parts and pressure Vessels

●Wheel,Tires and Metal parts

●Steel pipe,Cylinder and Wood

Technical Data

Attribute	Respective Value
Maximum penetration(FE)	100mm/20mm
Equipment weight	3.5T
System Dimension	2100mm1550mm2500mm(LWH)
X-ray Tube	160KV
Detection range	Φ500*800mm
Pixel Pitch	139μm
Focal size	5μm
Image Area	145mm x 145mm

Inspection Images:
